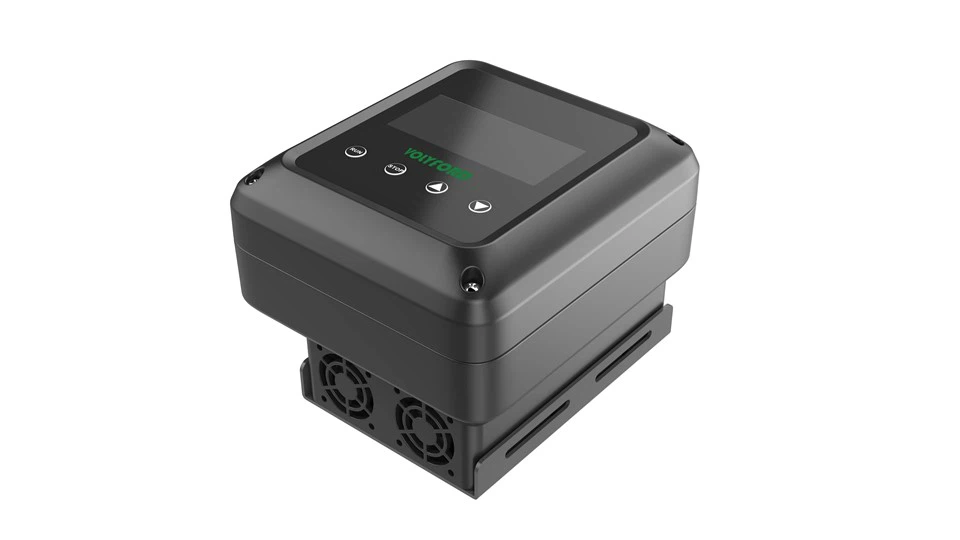

LCD New Inverter
Technical Specifications
|
Model |
Power |
Size |
Rated Current |
Input Voltage |
Output Voltage |
Category |
Input Frequency |
Output Frequency |
Pressure Sensor |
|
VFA-16LM |
0.75KW |
180*160*125mm |
4.8A |
1×220V |
1×220V |
Single-phase in and Single-phase Out |
50/60Hz |
20-50/60Hz |
4-20mA +24V 10bar |
|
1.1KW |
180*160*125mm |
7A |
|||||||
|
1.5KW |
180*160*125mm |
9.6A |
|||||||
|
2.2KW |
180*160*125mm |
11.5A |
Products Feature
- This variable frequency drive inverter is used especially for water pump, it adopts the industry leading technique SPWM and pressure transmission technique, detects actual pipeline pressure change and controls the rotation speed of the pump.
- The operation of this device is very easy, all functions can be finished by parameters setting , no need any professional staffs to debug.
- This VFD inverter is high-efficient , it can save water and electricity up to 20%~60% compared to traditional water supply system.
- Soft starting and stopping, constant water pressure prolong the service life of the pipe Network and make the water usage comfortable and enjoyable.
- The range voltage is wild, it can work stably in areas with large voltage fluctuation.
- The installation is very easy with direct screw thread, it can be used different kinds of water pumps and thus reduce extra costs.
- The LCD display makes it quick and easy to check and set the actual pressure value.
Application
- Tap water booster system
- Household and residential water supply system
- Swimming pool water supply system
- Commercial water supply system
- Factory dormitory water supply system
- Industrial water circulation system
- Cooling water systems
- Cold water circulation system
Technical Parameters
|
No. |
Product Specification |
0.75KW |
1.1KW |
1.5KW |
2.2KW |
|
1 |
Input Power |
Single-phase AC Power supply |
|||
|
2 |
Input Voltage |
110VAC or 220VAC |
|||
|
3 |
Allowed Voltage Fluctuation |
80V~140V(110V) OR 160V~260V(220V) |
|||
|
4 |
Input Frequency |
50/60Hz |
|||
|
5 |
Output Voltage |
110VAC or 220VAC |
|||
|
6 |
Load Type |
Pump |
|||
|
7 |
Output Frequency Range |
20-50/60Hz |
|||
|
8 |
Pressure Sensor |
24V, 4-20mA(10bar) |
|||
|
9 |
Pressure Setting Range |
0.5~9.0bar |
|||
|
10 |
Pressure Tank Setting Requirements |
Required not less than 2 liters inflatable pressure water tank(Preset pressure=60% of the setting pressure) |
|||
|
11 |
Temperature Range |
0~+40℃ |
|||
|
12 |
Medium |
Clean water within the temperature range of 0~+100℃ |
|||
|
13 |
Required Pressure When Self-starting |
When the factory setting pressure is less than 0.3 bar |
|||
|
14 |
Installation |
Make sure the grounding is appropriate and reliable before using. |
|||
Our advantage: We are a manufacturer in Ningbo, China. The factory mainly produces inverter, permanent magnet inverter pump, inverter swimming pool pump, photovoltaic inverter deep well pump, inverter circulating pump, inverter submersible pump and water pump controller. The factory has passed ISO9001 quality system certification, and many of the products we produce have passed TUV,CE,ROHS and other certifications.
Do you have Russian display for LCD pump inverter? We produce LCD pump inverter with English display as a rule, but we can order Russian display, Spanish LCD pump inverter, the MOQ is more than 2000 pcs.
I am very interested in the frequency inverters and water pump controllers you produce. Can I apply for agency rights? Thank you for your appreciation of our products. Our company has some assessment standards for the award criteria of agents. For specific details, you can contact our colleagues in charge of overseas sales.
Can the color of the inverter panel be customized? What's the minimum order quantity? The color of the inverter panel can be customized, and the minimum order quantity is 1,000pcs.
Can I stick the serial number or laser print the production date on the product? What is the minimum order quantity? The serial number or laser marking can be put on the product, but we have minimum order quantity requirement and require the purchase quantity is more than 1,000pcs.
What is the difference between inverter VFA-16LM series and VFA-10LM series? Inverter VFA-16LM series is smaller than VFA-10LM series products, the shell of inverter VFA-16LM series is plastic, the production cost is a little lower. Inverter VFA-16LM series is a little bit better waterproof and moisture-proof due to the inverter's internal potting treatment.
What is the protection level of the backpack-type inverter? IP55
Product Packaging: Inverter power below 2.2kw, 6 PCS/CTN;
Sample: Samples and shipping costs shall be paid by your side. Sample cost can be applied for exemption in the follow-up cooperation. Lead time of samples is 1 week.
Can the motor cable of your inverter be with waterproof female plug? Our 220V single-phase inverter for water pumps is available with waterproof female plugs.
What is the maximum power of the frequency converter for single-phase water pumps produced by your factory? The 220V single-phase input and single-phase output inverter produced by our factory has a maximum power of 3KW.
Lead time: 30-90 working days
After-sales service: 1 year warranty and lifetime maintenance.
What are your delivery terms? EXW, FOB Ningbo, CIF, etc.
What are the modes of cargo transportation? We can offer sea, rail, air and express transportation.
